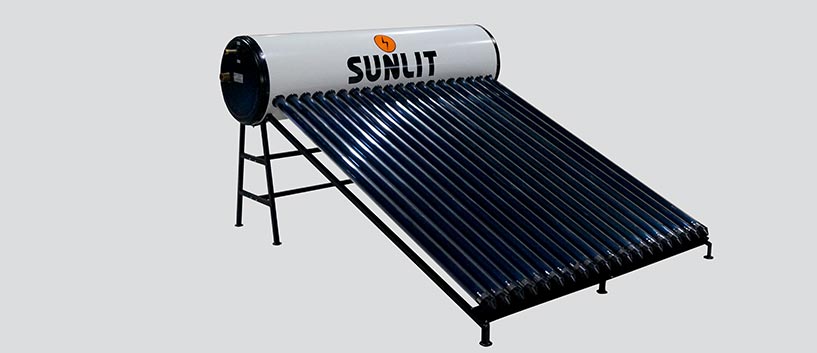

Evacuated tubes are the absorber of the solar water heater. They absorb solar energy converting It into heat for use in water heating. Evacuated tubes have already been used for years in Germany, Canada, Chin and UK. There are several types of evacuated tubes in use in the solar industry. At Sunlit, we use the "Twin-Glass Tube" technology. This type of tube is chosen for its reliability and better performance.
Technical Specification
| Length (nominal) | 1800mm / 1500mm |
| Outer tube diameter | 58 mm / 47 mm |
| Inner tube diameter | 47mm / 37mm |
| Glass Thickness | 1.6 mm |
| Thermal expansion | 3.3x10-6 oC |
| Material | Borosilicate Glass 3.3 |
| Absorptive Coating | Graded CU-N/CU |
| Absorptance | >92% (AM1.5) |
| Emittance | <8% (80oC) |
| Vacuum | P<5x10-3 Pa |
| Stagnation Temperature | >200oC |
| Heat Loss | <0.8W/ (m2oC) |
| Maximum Strength | 0.8MPa |
Insulated Storage Tank
| Inner Tank | Stainless Steel 304-L/Copper |
| Inner Tank Welding | Seam Welding/Gas Welding |
| Turbulence Preventer | Provided |
| Deep Drawn Dishes | Provided |
| Outer Tank | Stainless Steel 430 Grade / Coated sheet |
| Tank Side Dish | Aluminum Powder Coated |
| Heat Retention | 72 hours |
| Insulation | PUF |
| Electrical Backup | Provided ISI Make (Optional) |
| Supporting Stand | MS Epoxy Coated |
Application
1. Domestic
Usage
| Capacity | No.of Persons | Utility Points |
|---|---|---|
| 100 LPD | 3-4 Persons | 1-2 points |
| 150 LPD | 4-5 Persons | 2-3 points |
| 200 LPD | 5-6 Persons | 3-4 points |
| 300 LPD | 6-8 Persons | 5-6 points |
| 500 LPD | 10-12 Persons | 7-8 points |
Solar Lights
We offer a wide range of solar panel lights in Coimbatore, including LED street lights, solar power plants, solar inverters, solar pumping solutions, and solar lanterns. Our products are designed to be energy-efficient, sustainable, and affordable. We have a team of experienced solar experts who can help you choose the right solar panel lights for your needs. We also offer installation services so that you can get up and running quickly.
Solar Dryer
We offer a wide range of solar dryers in Coimbatore, including solar mini dryers, solar tunnel dryers, solar parabolic dryers, heat pump dehydrators, electric dryers, and solar portable dryers. Our products are designed to be energy-efficient, sustainable, and affordable. With solar dryers, you can dry your food and other products quickly. Our team will help you choose the right solar dryer for your needs.
